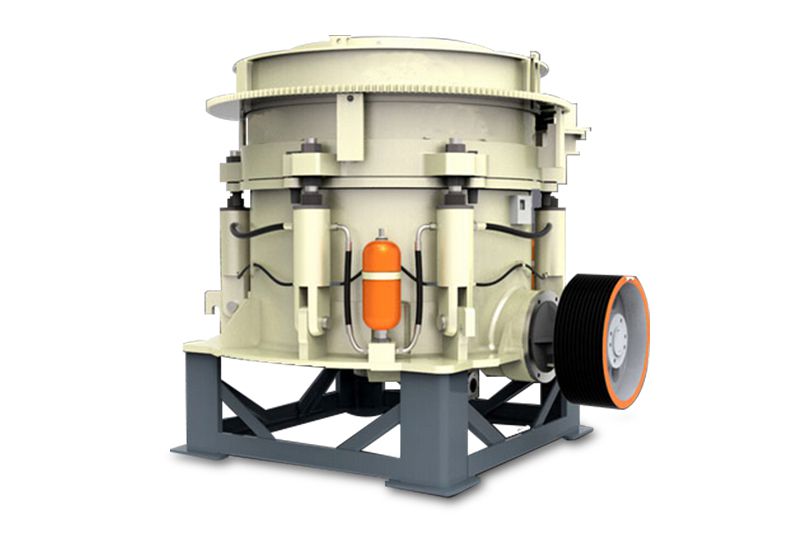

Multiple Cylinder Hydraulic Cone Crusher, YT Series
Yate YT series multiple cylinder hydraulic cone crusher is specially designed for heavy-duty working condition, superior stability, large production capacity and crushing efficiency. Advanced mainframe of this hydraulic cone crusher machine is combined with large eccentricity, high speed and intelligent automatic control system. Furthermore, this crushing machine is mainly applicable for crushing rock materials with hardness not exceeding 300Mpa in hydropower, construction, road building and mining.
Features
- Semi-automatic control system enables a controlled feed rate;
- With stable performances, the cavity design of this multiple cylinder hydraulic cone crusher reduces wears on the feed opening and minimizes the deterioration of wear parts, which ensures low consumption of wearing parts and low operating costs;
- Large crushing ratio and high production efficiency;
- The unique laminated crushing technique enables finished product size more uniform;
- Changing the fixed cone can adjust the size of finished production;
- The advanced hydraulic technology realizes the overload protection and hydraulic adjustment discharge port, which simplifies the crusher structure and reduces the weight;
- Thin oil lubrication is reliable and advanced, which can increase the service life;
- Easy maintenance, easy to operate; With the specialized patent invented by our company, the materials of this crusher machine are more wear-resistant, which ensures long service life;
Technical data
| Model | Crushing category | Setover (mm) | Maximum .feed size (mm) | Discharge opening (mm) | Capacity (t/h) | Power (kW) | Crusher weight (t) |
YT1300C | Coarse crushing | 27 | 245 | 19-51 | 172-349 | 185 | 23 |
YT1300Z | Medium crushing | 24 | 210 | 16-38 | 132-253 | 185 | 23 |
YT1300X | Fine crushing | 22 | 105 | 8-25 | 109-227 | 185 | 23 |
YT1400C | Coarse crushing | 30 | 235 | 25-65 | 210-530 | 220 | 25 |
YT1400Z | Medium crushing | 30 | 215 | 22-50 | 200-500 | 220 | 25 |
YT1400X | Medium crushing | 25 | 180 | 19-45 | 180-475 | 220 | 25 |
YT1650C | Coarse crushing | 34 | 300 | 31-65 | 280-610 | 250 | 35 |
YT1650Z | Medium crushing | 34 | 260 | 25-65 | 265-580 | 250 | 35 |
YT1650X | Fine crushing | 34 | 240 | 19-50 | 240-550 | 250 | 35 |
YT1800C | Coarse crushing | 39 | 269 | 25-64 | 299-635 | 250 | 50 |
YT1800Z | Medium crushing | 35 | 241 | 22-51 | 258-417 | 250 | 50 |
YT1800X | Fine crushing | 26 | 133 | 10-25 | 160-265 | 250 | 50 |
Note: The listed weight of the multiple cylinder hydraulic cone crusher in the table does not include the weight of motor, electric control equipment, lubrication station and hydraulic station.
Shenyang Yate is over 20 years of experience in the rock crushing industry. As an experienced rock crushing equipment manufacturer, we can develop and produce portable and economic coarse crushing systems that meet your various needs for the economic and reliable performance in the economic and mobile crushing industry. We are capable of offering mobile stone rock crushers with a variety of configurations to perfectly match different operational requirements. Our rock crushing machines are cost-effective and we are able to handle the entire size reduction process including crushing, grinding, screening, feeding, .etc. Our movable crushing and grinding equipment are also featured with innovative and dynamic crusher processing technologies that can make your material handling more accessible and reachable. So, if you’d like detailed information about our crushing machines and full-service, just feel free to email us or give us a call.
