Single Cylinder Hydraulic Cone Crusher, YCH/S Series

Single Cylinder Hydraulic Cone Crusher, YCH/S Series
  • Single Cylinder Hydraulic Cone Crusher, YCH/S Series
  • Single Cylinder Hydraulic Cone Crusher, YCH/S Series
  • Request a Quote

    Yate YCH/S series single cylinder hydraulic cone crusher adopts outstanding combination of crushing frequency and eccentricity, so that the size of the crushed product is much smaller and refined. The single cylinder hydraulic cone crusher is mainly used for different size of aggregate or ore milling fine crushing. With advanced and compact structural design, this hydraulic cone crusher can elevate and move cones by single hydraulic cylinder to realize various functions such as adjustment of ore outlets, clear chamber and overload protection, etc.

    Features
    • Large crushing ratio and high production efficiency;
    • The unique laminated crushing technique enables finished product size more uniform;
    • With stable performances, the cavity design of this single cylinder hydraulic cone crusher reduces wears on the feed opening and minimizes the deterioration of wear parts, which ensures low consumption of wearing parts and low operating costs;
    • Changing the fixed cone can adjust the size of finished production;
    • The advanced hydraulic technology realizes the overload protection and hydraulic adjustment discharge port, which simplifies the crusher structure and reduces the weight;
    • Thin oil lubrication is reliable and advanced, which can increase the service life;
    • Easy maintenance, easy to operate;

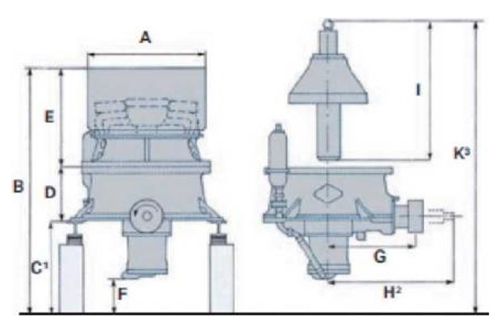

    • Single Cylinder Hydraulic Cone Crusher, YCH/S SeriesYCS-TYPE

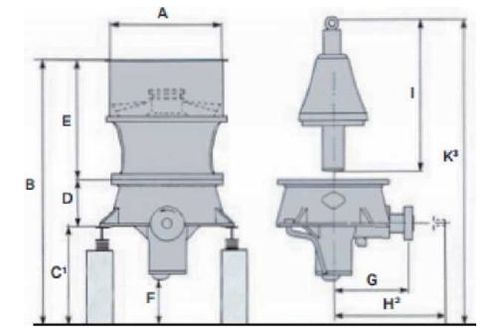

    • Single Cylinder Hydraulic Cone Crusher, YCH/S SeriesYCH-TYPE
    Technical data
    YCS-TYPE YCH-TYPE
    Dimension (mm) YCS420 YCS430 YCS440 YCS660 YCH420 YCH430 YCH440 YCH540 YCH550 YCH660 YCH870 YCH890
    A Φ1285 Φ1635 Φ2000 Φ2800 Φ1078 Φ1360 Φ1540 Φ1549 Φ1890 Φ2104 Φ2660 Φ2900
    B 2902 3485 4075 5100 2560 2992 3410 3296 3410 4215 5475 6450
    C1 1020 1125 1300 1600 1020 1125 1300 1160 1300 1600 2200 2870
    D 540 655 745 860 540 655 745 800 910 860 1228 1190
    E 1342 1705 2030 2640 1000 1212 1365 1336 1462 1755 2045 2400
    F 400 422 452 631 400 422 452 406 430 631 998 1150
    G 843 1061 1280 1497 843 1061 1280 1136 1276 1497 1824 1960
    H? 1270 1705 1900 2156 1270 1705 1900 1706 1885 2156 2850 3100
    I 1703 2050 2420 2895 1425 1688 1985 1844 2087 2344 3095 3500
    K2 3600 4250 4930 5355 3000 3570 4000 3904 4352 4835 6600 7700
    Model
    YCH420
    YCH430
    YCH440
    YCH660
    YCH870
    YCH890
    YCS420
    YCS430
    YCS440
    YCS660
    Max feeding size (mm) 135 185 215 275 300 370 240 360 450 560
    Feed opening (mm) 4-35 5-38 6-44 10-51 10-70 8-70 19-38 19-51 25-54 38-83
    Basic crusher weight (kg) 5300 9200 14300 26800 49800 76100 6800 12000 19300 35700
    Power (kW) 90 132 220 315 500 750 90 160 250 315
    Capacity (t/h) 22-128 37-219 68-413 143-662 280-1512 309-2128 70-168 91-344 195-601 318-1050
    Shenyang Yate is over 20 years of experience in the rock crushing industry. As an experienced rock crushing equipment manufacturer, we can develop and produce portable and economic coarse crushing systems that meet your various needs for the economic and reliable performance in the economic and mobile crushing industry. We are capable of offering mobile stone rock crushers with a variety of configurations to perfectly match different operational requirements. Our rock crushing machines are cost-effective and we are able to handle the entire size reduction process including crushing, grinding, screening, feeding, .etc. Our movable crushing and grinding equipment are also featured with innovative and dynamic crusher processing technologies that can make your material handling more accessible and reachable. So, if you’d like detailed information about our crushing machines and full-service, just feel free to email us or give us a call.
