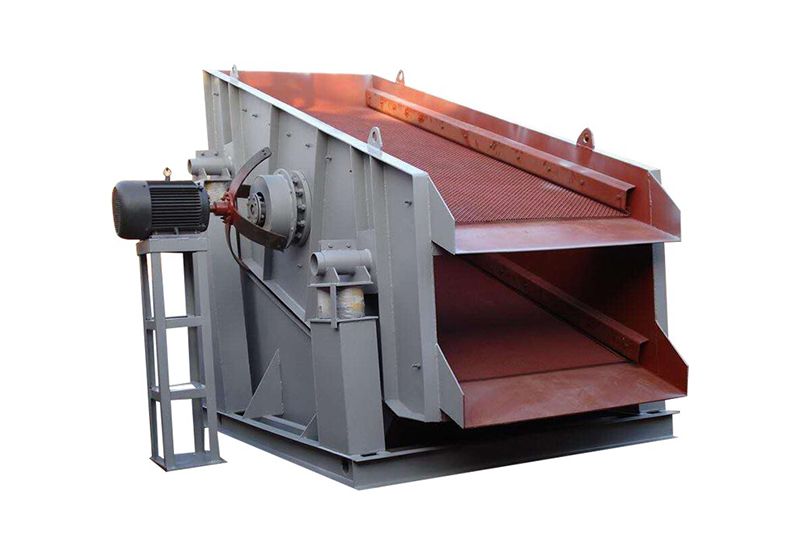

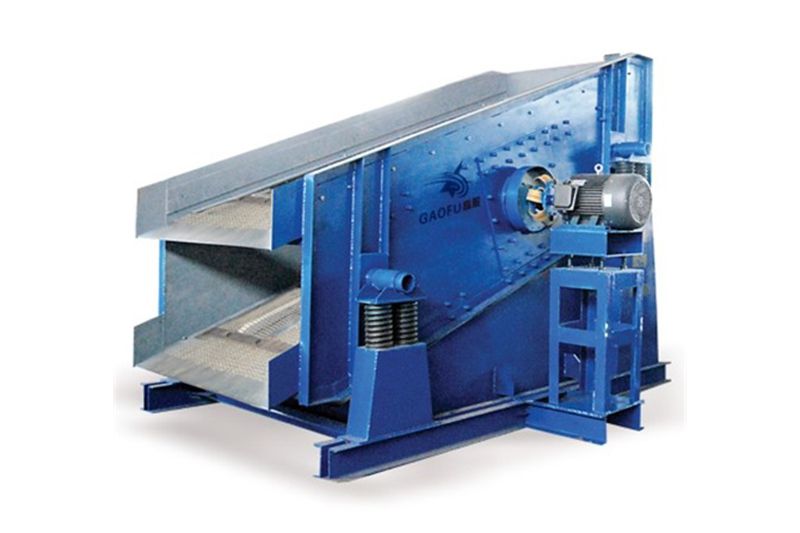

Inclined Vibrating Screen
Yate inclined vibrating screen is a new type of vibrating screen with inclined vibration, multi-layer and high efficiency. The compact design of the inclined vibrating screen makes this equipment function properly. It can be used to screen wet, dry, coarse or fine particles, which makes it more suitable to a wider range of applications, extensively used in mining, construction, transportation, energy and chemical industries, etc.
Features
- The inclined vibrating screen adopts spring steel woven screen mesh, thus providing long service life of this machine;
- The inclined vibrating screen also applies rubber isolation spring, which ensures lower vibration noise and steady operation;
- Simplified accessibility and easy maintenance;
- High screening efficiency;
Technical data
| Model | Screen decks | Particle dimension (mm) | Capacity | Specification | Motor | Weight | |||
| Deck | Screen area (m²) | Sieve size (mm) | (mm) | (Vh) | Vibration (HJ) | Amplitude (mm) | Power (kW) | (t) | |
| 2YA1236 | 2 | 4.3 | 6-50 | w200 | 72-245 | 14.08 | 4.75 | 11 | 5.3 |
| 2YA1548 | 2 | 7.2 | 6-50 | W200 | 125-410 | 14.08 | 4.75 | 15 | 6.4 |
| 2YAH1548 | 2 | 7.2 | 30-150 6-50 | W400 | 320-780 | 12.58 | 5.5 | 15 | 7.4 |
| 2YA1842 | 2 | 7.6 | 6-50 | w200 | 135-430 | 14.08 | 4.75 | 15 | 6.5 |
| 2YAH1842 | 2 | 7.6 | 30-150 6-50 | W400 | 340-900 | 12.58 | 5.5 | 15 | 7 |
| 2YA2148 | 2 | 10 | 6-50 | W200 | 175-570 | 12.47 | 475 | 22 | 10.5 |
| 2YAH2148 | 2 | 10 | 30-150 6-50 | W400 | 445-1200 | 11.5 | 5.5 | 22 | 11.2 |
| 2YA2460 | 2 | 14.4 | 6-50 | W200 | 250-810 | 12.47 | 4.75 | 30 | 13.6 |
| 2YAH2460 | 2 | 14. | 30-150 6-50 | < 400 | 645-1500 | 11.8 | 5.5 | 30 | 14.5 |
| 2YA2665 | 2 | 16.9 | 6-50 | W200 | 100-1000 | 12.47 | 8-11 | 30 | 14.5 |
| YA3073 | 1 | 22.3 | 5-100 | W300 | < 2040 | 11.8 | 6 | 30x2 | 24 |
Shenyang Yate is over 20 years of experience in the rock crushing industry. As an experienced rock crushing equipment manufacturer, we can develop and produce portable and economic coarse crushing systems that meet your various needs for the economic and reliable performance in the economic and mobile crushing industry. We are capable of offering mobile stone rock crushers with a variety of configurations to perfectly match different operational requirements. Our rock crushing machines are cost-effective and we are able to handle the entire size reduction process including crushing, grinding, screening, feeding, .etc. Our movable crushing and grinding equipment are also featured with innovative and dynamic crusher processing technologies that can make your material handling more accessible and reachable. So, if you’d like detailed information about our crushing machines and full-service, just feel free to email us or give us a call.
