Jaw Crusher, PV Series

Jaw Crusher, PV Series
  • Jaw Crusher, PV Series
  • Jaw Crusher, PV Series
  • Request a Quote

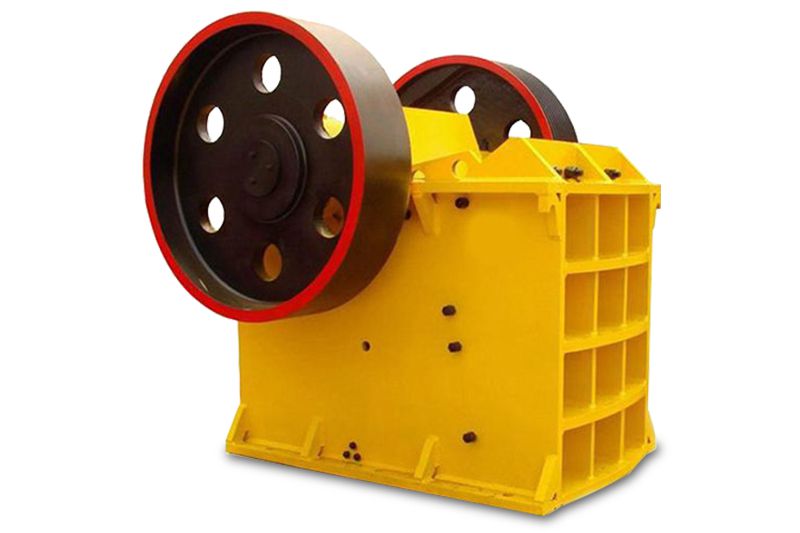

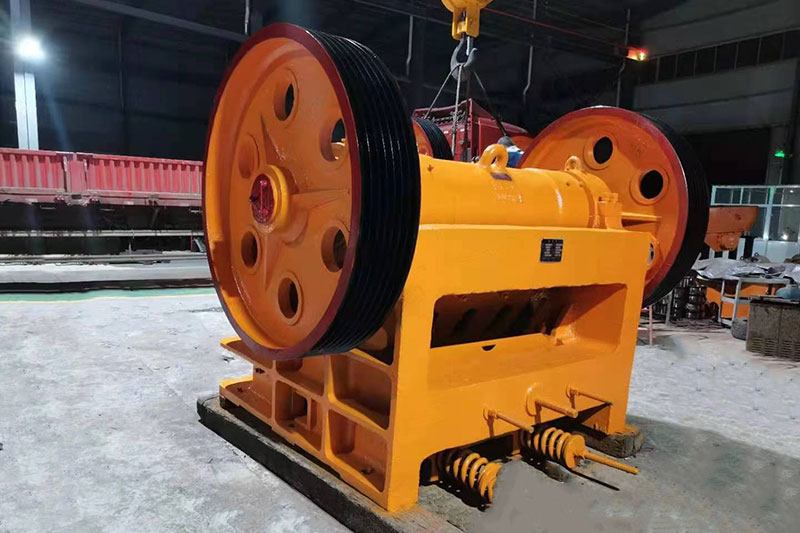

    Yate PV series jaw crusher is a new type of jaw crusher developed by our company with reference to the existing overseas advanced technologies. This rock crusher breaks large stones into smaller stones by causing a continuous impact on the raw material. And it applies a tapered roller V-flat design as the primary thrust bearing. Additionally, this rock crushing equipment is well suitable for hard and very hard rocks and abrasive applications in chemical, mining and construction industries and other industries.

    Features
    • The symmetrical "V" shape of the feed opening results in large and long stroke, outstanding operation performances and large crushing capacity;
    • Compared with old fashioned jaw crusher, this PV series jaw crusher is equipped with compact structure and small footprint, which can lead to less infrastructure costs;
    • The jaw crusher has a wide range of adjustment regarding the discharge opening, and it applies mechanical control devices, facilitating its flexibility and convenience;
    Technical data
    Model Dimension (mm) Power (kW) Material gap (mm) Weight (kg)
    Jaw crusher capacity TPH
    40 50 60 70 80 100 125 150 175 200 225 250 300
    CJ80
    800x510 75-90 65-75 80-95 95-125 115-150 130-170 165-215 210-275 250-325 290-380
    CJ100
    1000 x 750 110-132       150-210 170-225 215-280 265-345 315-410 370-480 420-545       20100
    CJ110
    1100x850 132-160       190-250 210-275 225-330 310-405 370-480 425-550 480-625       25060
    CJ125
    1250 x 950 160-200           290-380 350-455 415-535 470-610 530-690 590-770 650-845   36700
    CJ140
    1400x1070 200-220             385-500 455-590 520-675 590-765 655-850 725-945   45300
    CJ160
    1600x1200 200-250               520-675 595-775 675-880 750-975 825-1070 980-1275 68600
    CJ200
    2000x1500 400                 760-990 855-1100 945-1230 1040-1350 1225-1590
    Shenyang Yate is over 20 years of experience in the rock crushing industry. As an experienced rock crushing equipment manufacturer, we can develop and produce portable and economic coarse crushing systems that meet your various needs for the economic and reliable performance in the economic and mobile crushing industry. We are capable of offering mobile stone rock crushers with a variety of configurations to perfectly match different operational requirements. Our rock crushing machines are cost-effective and we are able to handle the entire size reduction process including crushing, grinding, screening, feeding, .etc. Our movable crushing and grinding equipment are also featured with innovative and dynamic crusher processing technologies that can make your material handling more accessible and reachable. So, if you’d like detailed information about our crushing machines and full-service, just feel free to email us or give us a call.
