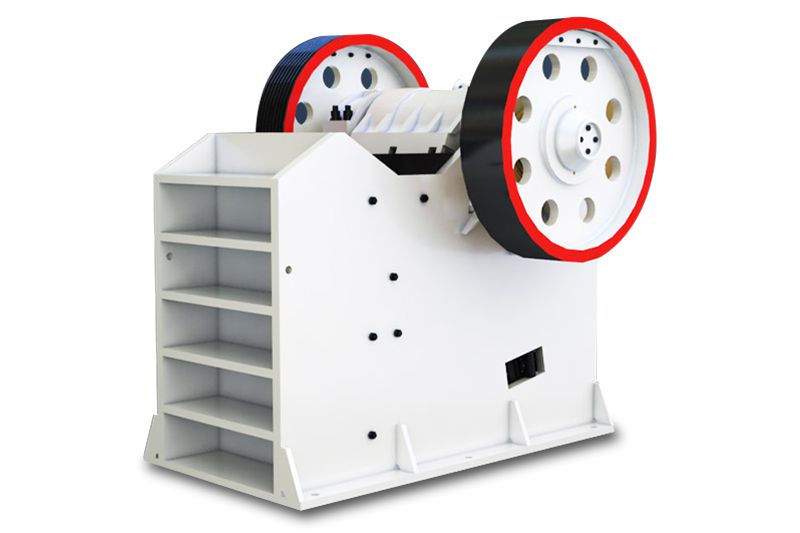

Jaw Crusher, PE Series

Jaw Crusher, PE Series
Request a Quote

PE series jaw crusher is universally used coarse crushing equipment for mineral processing in mining, construction, hydraulic project, chemical industry, etc. Typically, there are two sorts of jaw crushers, double toggle jaw crusher and single toggle jaw crusher. In the work of the single toggle jaw crusher, the swing jaw only moves like a simple arc, so it is also known as simple pendulum jaw crusher, the swing jaw of the double toggle jaw crusher moves in an arc at the same time also moves up and down, so it is also known as complex pendulum jaw crusher. By comparison, the single toggle jaw crusher is widely used in many industries nowadays because of its advantages of simple structure and easy operation. This jaw crusher is applicable in coarse and medium crushing operations in mining, smelting, building materials, highway, railway, cement, water conservancy and chemical industries. Therefore, the variety of materials offered, their efficiency and safety make it an ideal choice for you.

Features
  • Simple and compact structure, thus providing easy installation;
  • Reliable performances;
  • Easy to operate;
  • Easy maintenance;
  • Safe to use;
  • Wide applications for hard stones and rocks, tough and abrasive materials, and ferrous metals;
  • Low-cost operation;
The technical data of the double toggle jaw crusher
Model
PEF0406
PEF0507
PEF0609
PEF0710
PEF0912
Feeding size (mm) Width (mm) 400 500 600 750 900
Length (mm) 600 750 900 1060 1200
Max feeding size (mm) 340 400 500 630 750
Feed opening (mm) Crusher size (mm) 60 75 100 110 130
Open-side setting adjustment (mm) ±30 ±25 ±25 ±30 ±35
Crushing capacity (t) 18 40.5 60 110 130
Main motor Power (kW) 30 50 75 100 110
Voltage (V) 380 380 380 380 380
Rotation speed (rpm) 980 985 730 972 730
Dimension Length (mm) 1560 1930 2575 2730 5000
Width (mm) 1742 1940 1840 2760 4471
Height (mm) 1593 2205 2373 2820 3280
Weight
(electric motors are not included) (kg)
6550 10570 16950 27940 44130
The technical data of the single toggle jaw crusher
Model Feeding size (mm) Max feeding size (mm) Feeding opening (mm) Crushing capacity (t) Main motor Weight
(electric motors are not included)
Width (mm) Length (mm) Crusher size (mm) Open-side setting adjustment (mm) Power (kW) Voltage (V) Rotation speed (r/min) (kg)
PEJ0609
600 900 500 100 ±25 60 75 740 380 25.9
PEJ0912
900 1200 750 130 ±35 180 110 730 380 55.3
PEJ1215
1200 1500 1000 155 ±40 310 160 492 380 110.38
PEJ1521
1500 2100 1300 180 ±45 550 250 490 380 187.6
Shenyang Yate is over 20 years of experience in the rock crushing industry. As an experienced rock crushing equipment manufacturer, we can develop and produce portable and economic coarse crushing systems that meet your various needs for the economic and reliable performance in the economic and mobile crushing industry. We are capable of offering mobile stone rock crushers with a variety of configurations to perfectly match different operational requirements. Our rock crushing machines are cost-effective and we are able to handle the entire size reduction process including crushing, grinding, screening, feeding, .etc. Our movable crushing and grinding equipment are also featured with innovative and dynamic crusher processing technologies that can make your material handling more accessible and reachable. So, if you’d like detailed information about our crushing machines and full-service, just feel free to email us or give us a call.
