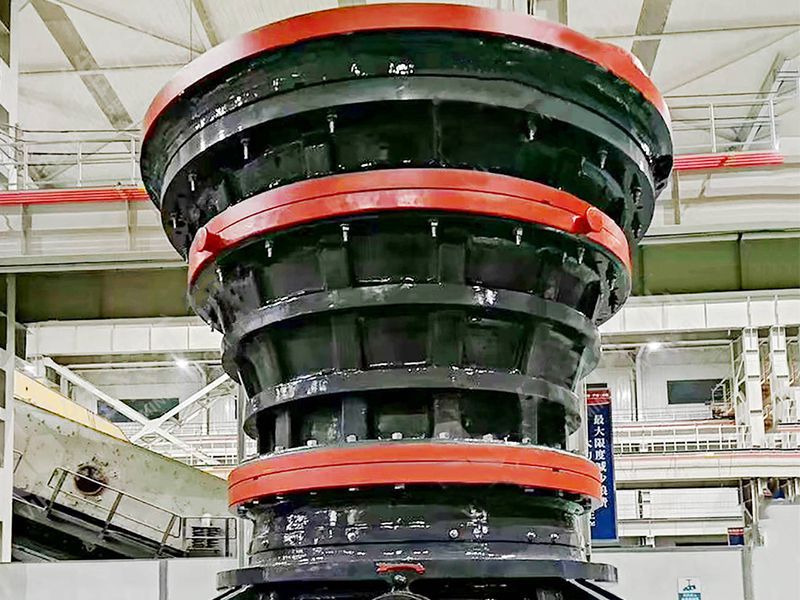

Gyratory Crusher, PX Series

Gyratory Crusher, PX Series
Request a Quote

Yate is equipped with two series of gyratory crushers, which are PXZ series and PXQ series, of which the PXZ series gyratory crusher is typically used for crushing materials of medium or above medium hardness and PXQ series is applied for crushing materials of medium or below medium hardness. This gyratory crusher is one of the main equipment used in metallurgy, building materials, chemical industry and hydropower sectors for preliminary crushing of ores into rocks. Essentially, this gyratory crusher consists of a heavy cast-iron, or steel, frame which includes in its lower part an actuating mechanism (eccentric and driving gears), and in its upper part a cone-shaped crushing chamber, lined with wear-resisting plates (concaves). Anyway, this type of machine can produce a rather finer and more uniform final product, and it is suitable only where large quantities of material are to be handled. It is well received by customers both at home and abroad for various features as follows.

Features
  • As the preferred equipment for crushing multiple hard materials, Yate PX series gyratory crusher is unique and well recognized;
  • Safe and reliable operation;
  • The gyratory crusher can produce a rather finer and more uniform final product with high energy efficiency;
  • Up-to-date design;
  • Lower energy consumption (cost effective);
Technical data of the PXZ series gyratory crusher
Model Feed size (mm) Discharging size (mm) Allowable max feed size (mm) Discharge Setting (mm) Motor power (kW) Throughput capacity (t/h) Weight (t)
PXZ0506
500 60 420 60-75 130 140-170 44.1
PXZ0710
700 100 580 100-130 145 310-400 91.2
155
PXZ0909
  90   90-120   380-510
PXZ0913
900 130 750 130-160 210 625-770 141
PXZ0917
  170   170-190   815-910
PXZ1216
1200 160 1000 160-190 310 1250-1480 228.2
PXZ1221
210 210-230 1560-1720
PXZ1417
1400 170 1200 170-200 430 1750-2060 309
PXZ1422
220 210-230 400 2160-2370
PXZ1618
1600 180 1350 180-210 2x310 2400-2800 481
PXZ1623
230 210-240 2800-3200
PXQ0710
700 100 580 100-120 130 200-240 45
PXQ0913
900 130 750 130-150 145 350-400 86.7
155
PXQ1215
1200 150 1000 150-170 210 720-815 144
Shenyang Yate is over 20 years of experience in the rock crushing industry. As an experienced rock crushing equipment manufacturer, we can develop and produce portable and economic coarse crushing systems that meet your various needs for the economic and reliable performance in the economic and mobile crushing industry. We are capable of offering mobile stone rock crushers with a variety of configurations to perfectly match different operational requirements. Our rock crushing machines are cost-effective and we are able to handle the entire size reduction process including crushing, grinding, screening, feeding, .etc. Our movable crushing and grinding equipment are also featured with innovative and dynamic crusher processing technologies that can make your material handling more accessible and reachable. So, if you’d like detailed information about our crushing machines and full-service, just feel free to email us or give us a call.
